Configuring the connection to the dispenser service provider

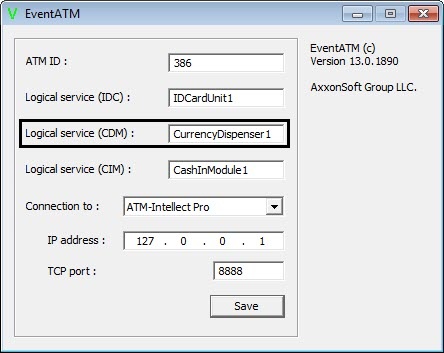

To configure connection to the service provider of the dispenser (CDM), specify the value of Logical Service (CDM) parameter.

The way of identifying its value is similar to service provider of card reader except that instead of searching "class"="IDC” parameter in the registry one should find the "class"="CDM" value (see Configuring the connection to the card reader service provider).

Logical name of the service provider of dispenser by default is:

• For “NCR” ATMs, «CurrencyDispenser1».
• For “Wincor” ATMs, «CDM30».
• For “Diebold” ATMs, «DBD_AdvFuncDisp».
