To configure a V200 input monitor interface's input point, use the setup panel of the relevant Input point (V200) object.To find this object,go to the Settings dialog box, click the Hardware tab, select the relevant Input monitor interface (V200) object and browse its object subtree.

To configure a V300 interface module's input point, use the setup panel of the relevant Input point (V300) object. To find this object, go to the Settings dialog box, click the Hardware tab, select the relevant Output monitor interface (V300) object and browse its object subtree.

To configure the input points:

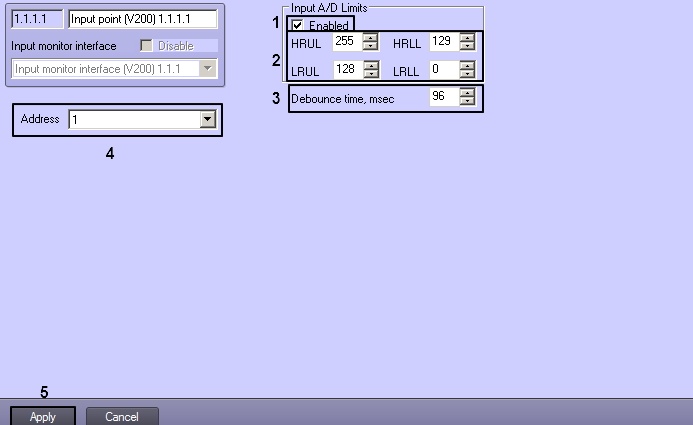

  1. Go to the setup panel of the Input point object.
  2. If the input point is enabled, select the Enabled checkbox (1).
  3. Configure the input A/D limits (2) (see Section Configuring EEPROM Limits).
  4. In the Debounce time, msec field, enter the time period (in milliseconds) to be used for fixing (debouncing) the bouncing input point signal (3).
  5. In the Address field, the input point's address is preset (4). Changing the address may lead to losing connection to the input point.
  6. Click Apply to save the changes (5).

The input points are now configured.
