To configure the MicroTrack II cable go to the settings panel of the MicroTrack II Cable object. This object is created on the basis of the MicroTrack II object on the Hardware tab of the System settings dialog window.

Note.

The MicroTrack II controller supports two loops (A, B). If more loops are created they will be ignored by system.

To configure the MicroTrack II cable, do the following:

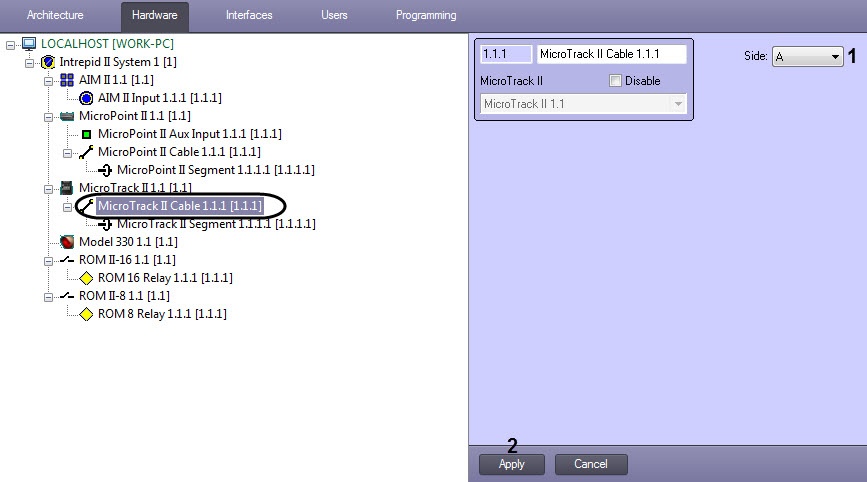

  1. Go to the MicroTrack II Cable object’s settings panel.
  2. From the Side drop-down list (1) select the ID of MicroTrack II cable.
  3. Click the Apply button (2).

  Configuring of the MicroTrack II cable is completed.
