Create and configure the analytics channel

The Analytics channel is the system object that is responsible for receiving, processing, and storing the camera events.

To work with the Traffic analysis module, use the Analytics channel system object. To configure it, do the following:

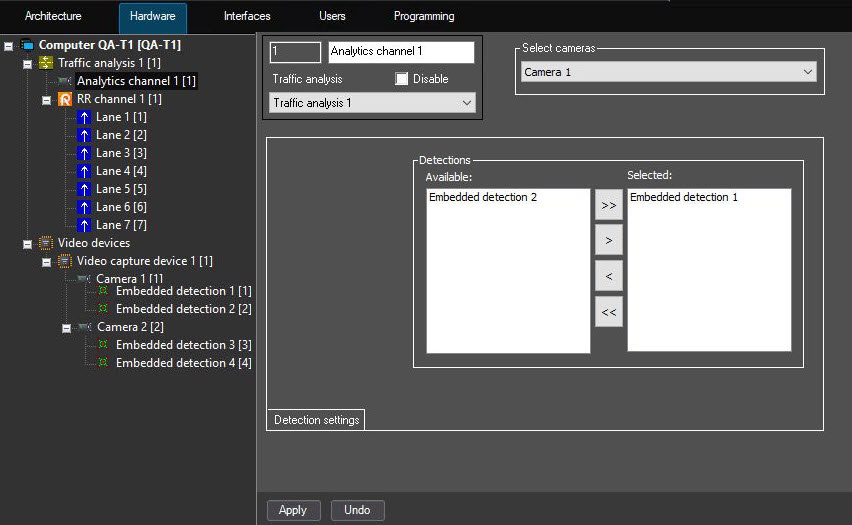

1. Create the Analytics channel object on the basis of the Traffic analysis object.


2. From the Select cameras drop-down list, select the camera whose events are received, processed, and stored by the analytics channel.
3. Select the required detectors for the analytics channel by moving them from the Available list to the Selected list with navigation buttons.


   Note

   You must create detectors for the analytics channel beforehand (for more details, see Embedded detectors).

4. Click the Apply button.

The analytics channel is created and configured.
