In order to configure Vanderbilt integration module, do the following:

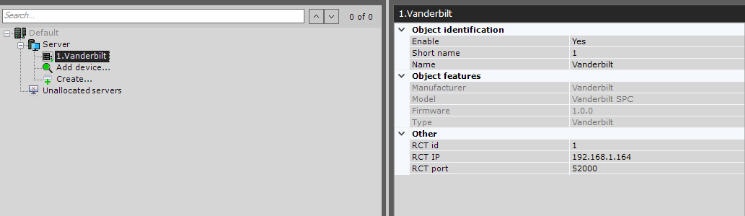

  1. Select the main Vanderbilt object.
  2. In the RCT id field, enter RCT id configured in the FlexC ATS settings of the Vanderbilt SPC panel.
  3. In the RCT IP field, enter IP address of the machine on which Vanderbilt module is added. It must be in the same network as Vanderbilt Panel.
  4. In the RCT port field, enter the port number configured in FlexC ATS settings of Vanderbilt SPC panel.
  5. Click the Apply button to save the settings.
  6. Click the button, and from the drop-down list select Download configuration from device.
  7. Click the Apply button.

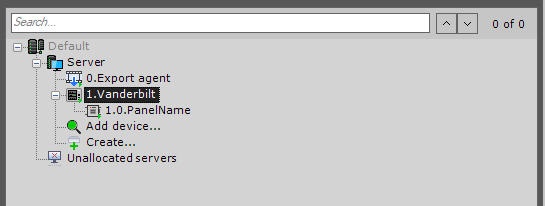

As a result, all Vanderbilt SPC panels that are configured to connect with the machine with RTC IP address will be listed under the main Vanderbilt object.

Attention!

Since Vanderbilt SPC panel connects to the Axxon One server, the server’s firewall must allow traffic from the device with the RCT IP address and RCT port.

In order to configure the Vanderbilt SPC panel, do the following:

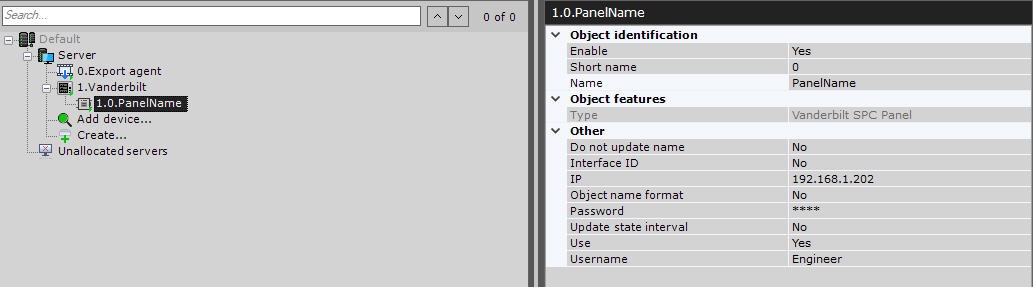

  1. Go to Panel settings under the main Vanderbilt object.
  2. In the Use field, select Yes to enable communication with selected Vanderbilt SPC panel.
  3. Enter Username and Password.
  4. Click the Apply button to save the settings.
  5. Go back to the main Vanderbilt object.
  6. Click the  button, and from the drop-down list select Download configuration from device.
  7. Click the Apply button.

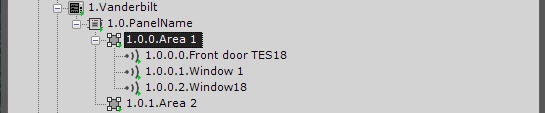

As a result, integration module will download all Vanderbilt SPC panel objects, including Areas and Sensors.
