Working with the Vanderbilt SPC integration module

General information about working with Vanderbilt SPC integration module

The Vanderbilt SPC integration module is managed through the Map, Equipment Board, and Event Board interface objects, along with Programming rules.

For the information on configuring these interface objects, see Configuring the interactive map, Configuring an Equipment Board and Configuring an Event Board.

For the information on working with these interface objects, see Working with the interactive map, Working with Equipment Board and Working with Event Boards.

For the information on configuring Programming rules, see Programming.

Managing Vanderbilt SPC objects

States

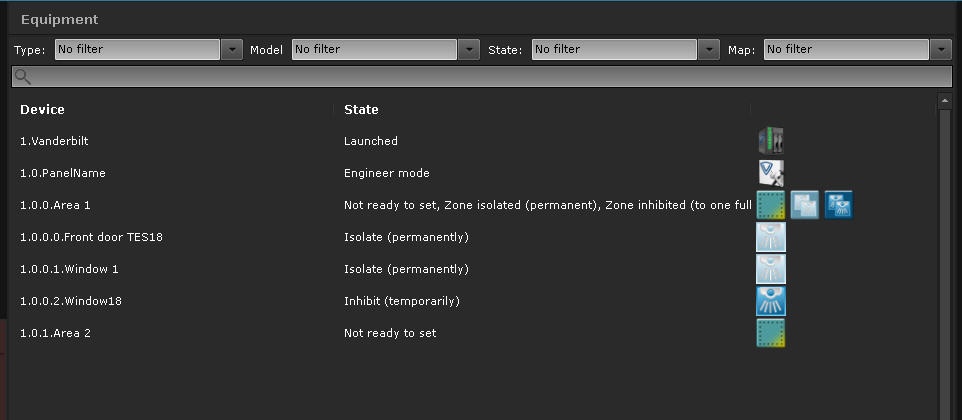

States available for various Vanderbilt SPC objects are listed in the tables below.

1. Server object:


   State	Icon
   Link lost
   Launched
   Unknown

2. Panel object:


   State	Icon	State	Icon
   Active alerts		Engineer mode
   Active alarms		Link lost
   Inhibited alerts		Link set
   Isolated alerts		Unknown

3. Area object:


   State	Icon	State	Icon
   Full set		Zone inhibited (to one fullset)
   Link lost		Zone isolated (permanent)
   Not ready to set		Zone local alarm
   Partset A mode		Zone masked
   Partset B mode		Zone post alarm
   Unknown		Zone soak
   Unset		Zone tamper
   Zone alarm		Zone trouble
   Zone frequent

4. Seismic detector, PIR 360, Panic button, Magnetic detector and PIR objects:


   State	Seismic detector	PIR 360	Panic button	Magnetic detector	PIR
   Actuated
   Alarm
   Armed
   Inhibit (temporarily)
   Isolate (permanently)
   Link lost
   Masked
   OK
   Post alarm
   Soak
   Tamper
   Trouble
   Unknown

Commands

Commands accessible via Axxon One interface for various Vanderbilt SPC objects are listed in the table below.
