General information about working with Satel2 ETHM-A integration module

The Satel2 ETHM-A integration module is managed through the Map, Equipment Board, and Event Board interface objects, along with Programming rules.

For the information on configuring these interface objects, see Configuring the interactive map, Configuring an Equipment Board and Configuring an Event Board.

For the information on working with these interface objects, see Working with the interactive map, Working with Equipment Board and Working with Event Boards.

For the information on configuring Programming rules, see Programming.

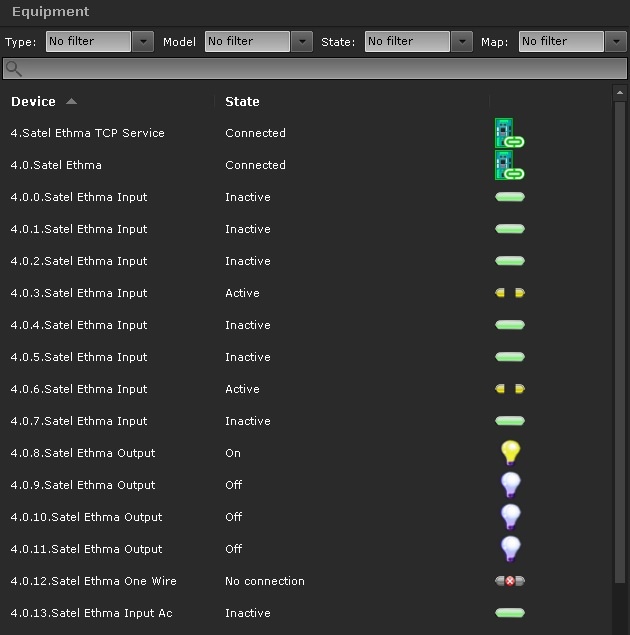

Managing Satel2 ETHM-A objects

Commands accessible via Axxon One interface for Satel2 ETHM-A objects are listed in the table below.

ObjectCommands
Satel Ethma Input
  • Clear alarm
  • Disable
  • Enable
Satel Ethma Output
  • Deactivate
  • Activate
Satel Ethma One Wire
  • Clear alarm
  • Disable
  • Enable
Satel Ethma Input Ac
  • Clear alarm
  • Disable
  • Enable

Changing visualization settings of Satel2 ETHM-A objects

In order to change how the Satel2 ETHM-A object is visualized on the map, do the following:

  1. Configure a map with Satel2 ETHM-A objects added and save the changes.
  2. Enter the Edit layout / Map mode.
  3. Left-click the Satel2 ETHM-A object.
  4. Select a value from Visualization settings drop-down list.
  5. Save the settings.

Object visualization will be changed according to the set value.
