To configure the object of the Protege integration module, do the following:

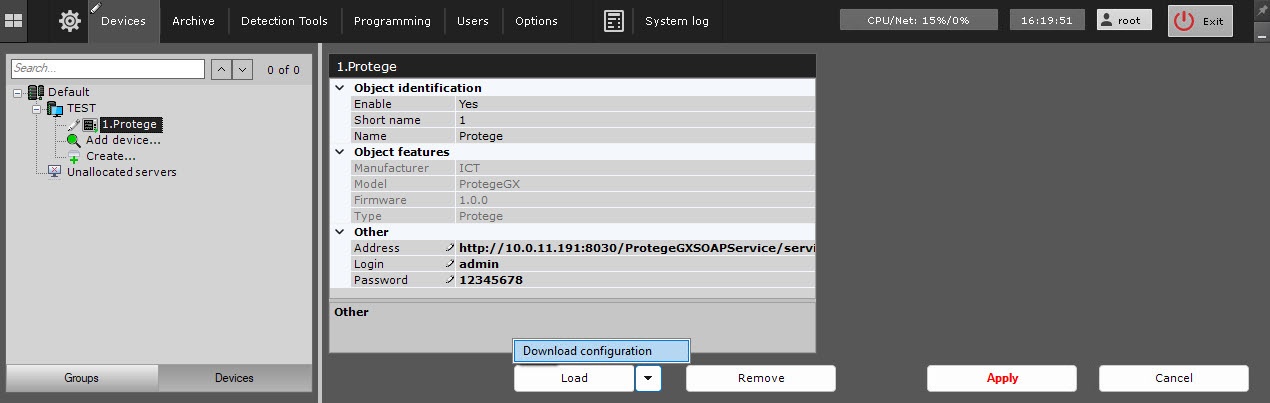

  1. Go to the settings panel of the Protege object.
  2. In the Address field, specify the IP address to connect to the Protege GX manufacturer's software.
  3. In the Login field, specify the name of the user to authorize in the Protege GX manufacturer's software.
  4. In the Password field, specify the user password to authorize in the Protege GX manufacturer's software.
  5. Click the Apply button to save the settings.
  6. To download the configuration and build the device tree, click the  button and select Download configuration from the drop-down list.
  7. Click the Apply button.

Configuring the object of the Protege integration module is complete. A device tree is built:
