Documentation for Axxon One 3.0 version. Documentation for Axxon One 2.0 version is also available.


General information

This action starts a slideshow of specific layouts (see Configuration of layouts) on the selected operator monitor for the specified role.

Configuring an action

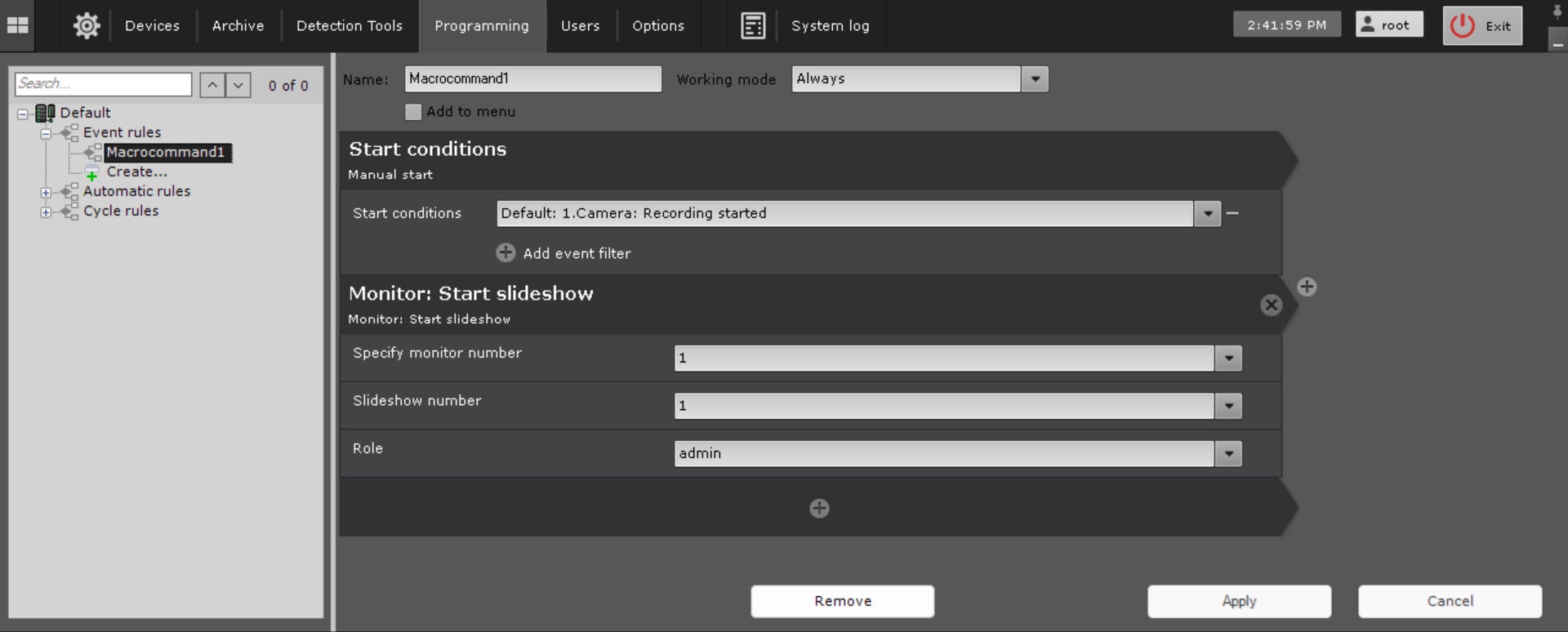

To configure the Start slideshow action, do the following:

  1. Go to the Programming tab.
  2. In the Event rules or Cycle rules list, click Create... (see Configuring macros).
  3. Select a start condition that triggers a macro (see Configuration of start conditions).
  4. Click the  button below start conditions.
  5. From the drop-down list, select Monitor: Start slideshow.
  6. In the Specify monitor number parameter, select the number of the monitor on which you want to start a slideshow. If you select a dash (−) when selecting a monitor, a slideshow starts on the active monitor.
  7. In the Slideshow number parameter, select the number of a slideshow. The list starts with a zero. For example, Slideshow #1 in the Layouts interface has the number 0.
  8. In the Role parameter, select a role for which the macro will be executed. If you leave the Role field blank, the macro is executed for all roles that have access to this rule.
  9. Click the Apply button.

Configuration of the Start slideshow action is complete.
