Documentation for Axxon One 3.0/3.1 version. Documentation for Axxon One 2.0 version is also available.

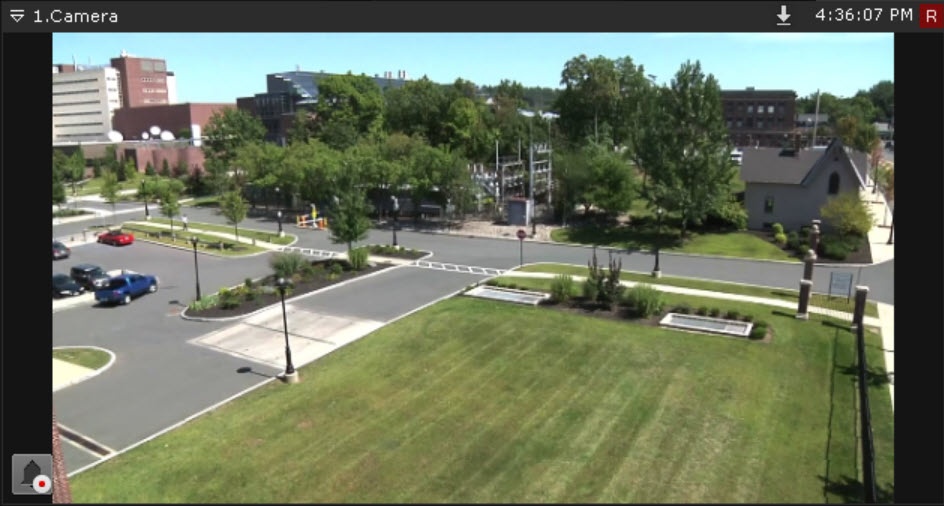

The time display is located in the upper right corner of the surveillance window.

Note

  • Depending on the settings (see User Interface), the time display can show the date .
  • Starting with Axxon One 3.1, in live mode, the LIVE label is displayed in the surveillance window instead of the time. To display the time instead of the LIVE label, set the Show time in video surveillance window in live view mode checkbox in the Options tab → User Interface (see User Interface).

The current time of the client is shown on the time display in live mode: .

In the Archive, Alarm management, and Archive Search modes, it shows the time of the video that you are viewing and the playback mode:

  1. Forward playback: .
  2. Reverse playback: .
  3. Pause: .

If the video is currently being recorded from the camera, the letter R is displayed in red color to the right of the time display: .

If there's no recording to the archive for the camera, but the camera has embedded storage and it is enabled (see Embedded storage), the "no record" status is displayed in the product interface, that is, the letter R is displayed in gray color:

If the camera isn't linked to the archive, the letter R is crossed out: .

If the user doesn't have access to the archive (see Role), the interface displays the "no access" status, and the letter R is displayed in a lock icon on a yellow background .
