Documentation for Axxon PSIM 2.0. Documentation for other versions of Axxon PSIM is available too.

Previous page Next page

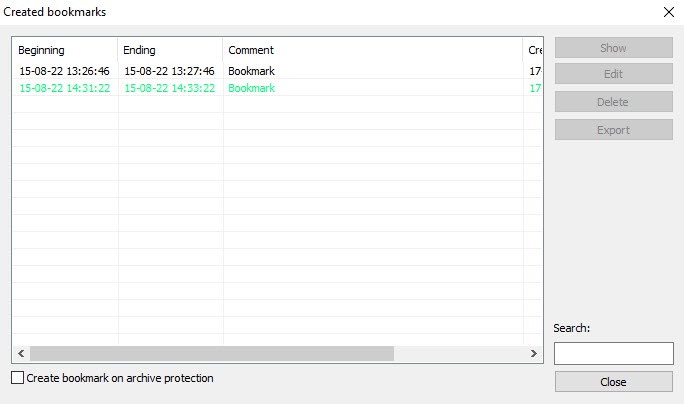

To view the list of bookmarks, click the button on the control panel of the video surveillance monitor. The Created bookmarks window opens.

Note

The button is not displayed if you don't select the disk for recording (see Selecting disks for video archive storage).

The list of bookmarks is presented as a table. The fields of the table are described below.

Field

Description

Beginning

Date of start period included in the bookmark

Ending

Date of end period included in the bookmark

Comment

Comment entered when the bookmark was created

Created

Date of the bookmark creation

Exported

Date of the bookmark export (see The AviExport utility)

To sort the list of the bookmarks by any column, click the heading of the column. Sorting can be performed both by dates and text fields.

The Search field is used to search for the bookmarks by the comment. If you specify more than one search term, then the comments containing all these words are found.

The Show button is used to jump to the first of the protected videos for the specified period in the surveillance window in the archive mode. The Created bookmarks window closes.

Note

You can jump to viewing the bookmark video only if the video from the camera to which the bookmark belongs is displayed in the monitor in one of the surveillance windows. If the camera is not displayed in any of the monitor windows, nothing happens after you click the Show button. In order for the bookmark video to be displayed, you must first add the camera corresponding to the bookmark to the surveillance window.

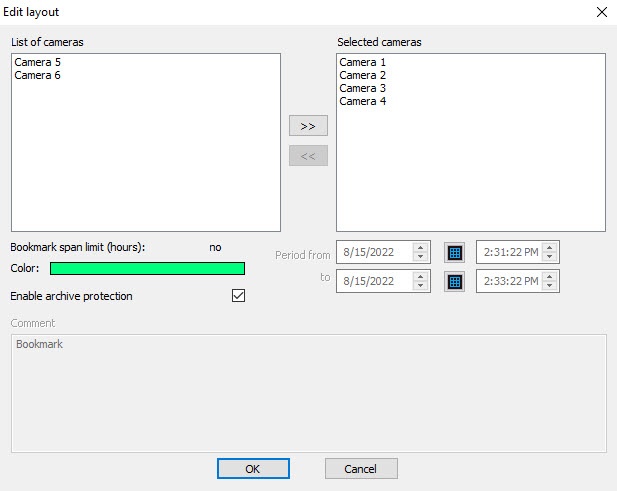

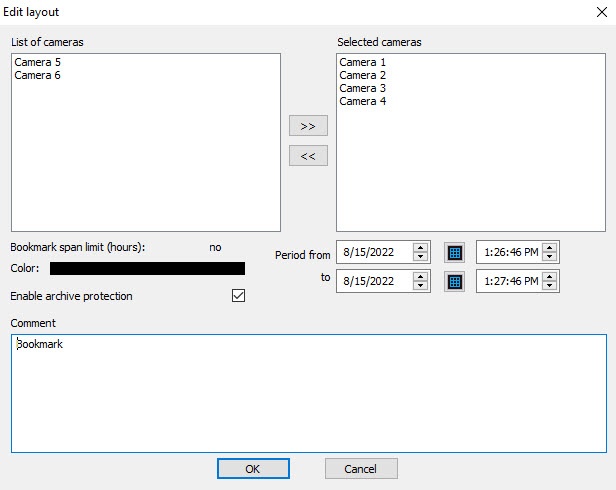

The Edit button allows changing the bookmark: set a different list of cameras, time period, and comment. Editing is performed in the Edit layout window, the interface of which is similar to the Create bookmark window (see Create a bookmark).

If a user has no rights to create and delete bookmarks, they can only add cameras to the bookmark. Other parameters of the bookmark are not available for editing.

The Delete button is used to delete the bookmark and remove protection from videos.

The Export button opens the Export window, in which you can select the required cameras and specify the export period corresponding to the selected bookmark in the list of the created bookmarks (see The AviExport utility).

Note

The Delete and Export buttons may not be displayed if the user does not have the corresponding rights.

The Create bookmark on archive protection checkbox enables the automatic creation of the bookmarks when the archive is protected (see Protect videos and remove protection). The bookmark is assigned a name in the format "Username + Camera name + Start date and time + End date and time."

The Close button is used to close the Created bookmarks window.
