This section provides step-by-step instruction for installing Axxon PSIM with the Sever/Remore administrator's workstation installation type.

Note

Note the following features during the installation of Axxon PSIM:

  • Install Axxon PSIM on a clean Windows OS (see Operating system requirements).
  • To install Axxon PSIM, OS Windows administrator rights are required.

To install Axxon PSIM, do the following:

  1. Unpack the archive downloaded from the official website of the company, in accordance with the manual in Getting ready for Axxon PSIM installation. The destination folder displays the contents of the kit.

  2. Run the setup.exe executable file used to start the Axxon PSIM installation program.
    As a result, the window for selecting the language of the installation program is displayed.

    Note

    When you install Axxon PSIM on Windows 8 OS or OS Windows Server 2012 OS, you must install Microsoft.Net Framework 8.0 or later. Otherwise, it is installed together with Axxon PSIM.

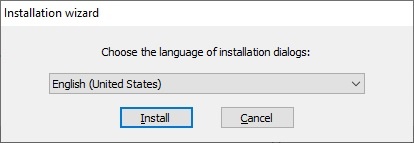

  3. Select the language of the installation program from the list and click the Install button.

    As a result, the window for selecting the type of installation is displayed.

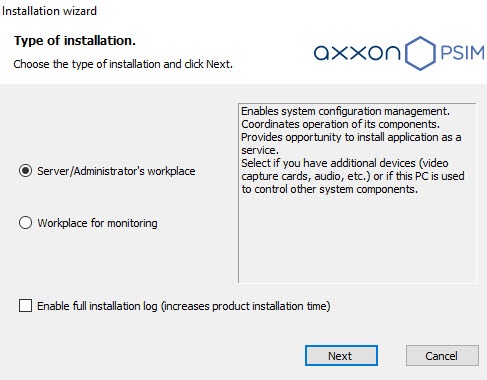

  4. Select the Server/Administrator's workstation installation type.

  5. Set the Enable full installation log (increases product installation time) checkbox if you want to write all software installation events to the log file.

    Note

    When you install the software, events are logged to the PSIMSetup.log log file. To collect log files, we recommend using the Support.exe utility (see The utility for collecting system data for the technical support service section).
  6. Click the Next button.

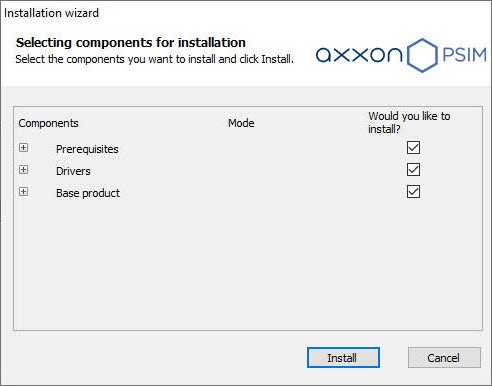

    The window for selecting the components for installation is displayed.

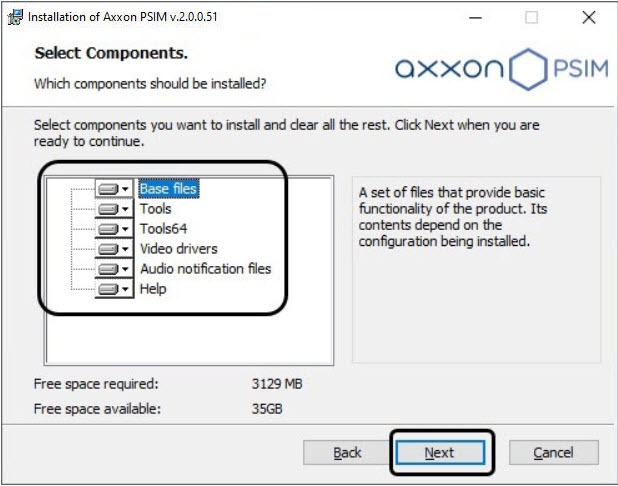

  7. Set the checkboxes next to the components that you want to install (you can expand the lists by clicking ). Consider the following peculiarities when you select the components:
    1. We recommend installing all provided components—the Axxon PSIM installer sets checkboxes next to everything required for proper operation by default.

    2. If you perform the installation using the comprehensive installation package, including the vertical solutions modules, at this stage you can select the installed vertical solutions. You must select only those that you will actually use on this computer; there is no need to install everything. Vertical solutions are installed after you complete the Axxon PSIM base installation. The installation process is described in the documentation for the corresponding vertical sollution (see the links at the bottom of the Documentation for Axxon PSIM page).

    3. For the Axxon PSIM to operate, you must install Microsoft.Net Framework 4.0 or later. It is usually bundled with Windows OS and doesn't require separate installation. If you don't have it, then .Net 4.6 is offered for installation among Prerequisites—make sure to set the checkbox. For more information about Microsoft.Net Framework, see the official documentation at https://learn.microsoft.com/en-us/dotnet/framework/.

    4. At this stage, you can refuse to install the MS SQL Express database server. In this case, at step 16, you must configure the connection to the remote database. After you complete the installation of Axxon PSIM, you can change the database connection parameters using the idb.exe utility—see Connecting the Axxon PSIM database. Note that Axxon PSIM operation is impossible without connection to any database source.

      Note

      If this method of language installation isn't suitable, later you can install each language separately (see Installing the language). After the installation, use the tweaki.exe utility to switch languages (see Switching languages in the Axxon PSIM Software System).

  8. Click the Install button.

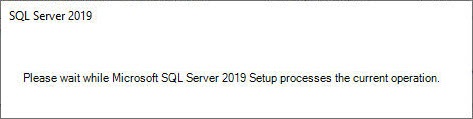

    After that, the automatic installation of the selected components is performed except Microsoft SQL Server Express 2014 database server (required for operation with Axxon PSIM databases), that is installed manually (see Microsoft documentation).

    Attention!

    The installation of the required prerequisites can take a lot of time (more than 10 minutes).

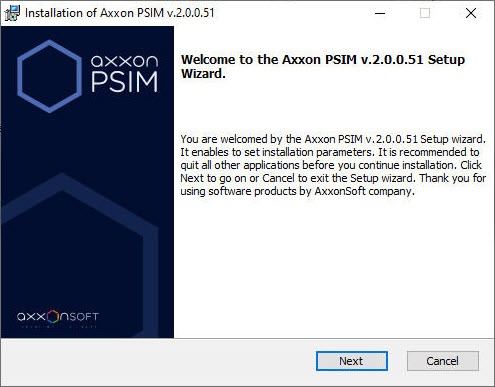

    After you complete it, the Axxon PSIM welcome window for the installation is displayed.

  9. Click the Next button.
    The window with the license agreement is displayed.

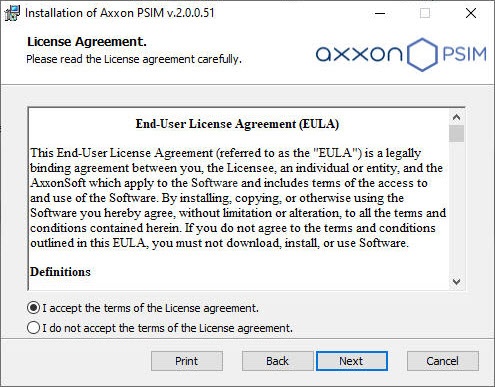

  10. Read the license agreement and accept its terms by selecting I accept the terms of the License agreement, otherwise, the Axxon PSIM installation is stopped.
  11. Click the Next button.
    The window for selecting the installation mode is displayed.

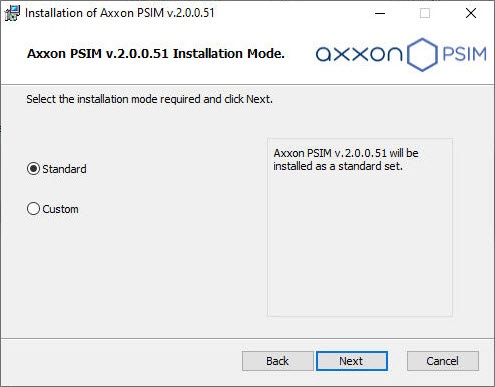

  12. Select the installation mode.

  13. Click the Next button.

    When you select the Custom installation mode, the window for selecting the installation path is displayed, and then the window for selecting the Axxon PSIM components is displayed. When you select the Standard installation mode, these steps are omitted.

    Note

    When you select a component, the description of the component is displayed in the installer window.

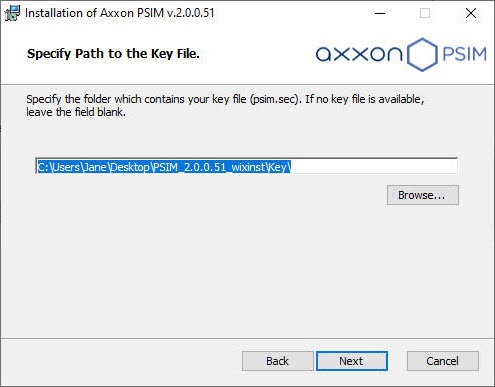

    The window for specifying the path to the file with the license key is displayed. Insert the path to the folder with the file or select it in Explorer by clicking the Browse button.

    Note

    Leave the field blank if the key file is copied later.

  14. Click the Next button.

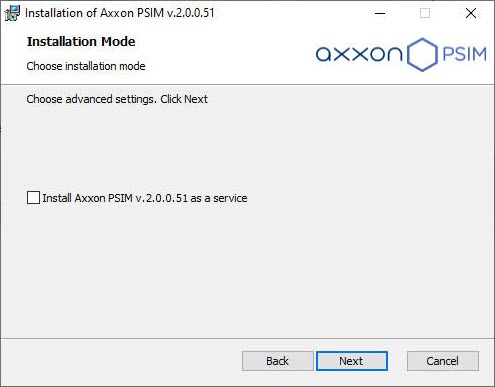

    The window for selecting the Axxon PSIM as a Service installation type is displayed.

    Set the Install Axxon PSIM as a service checkbox if you want to start Axxon PSIM before the user authorization in the Windows OS and before the startup of Windows applications (including the Explorer application that is used for starting Windows OS interfaces and various other applications installed on the server, see Working with Windows OS services for operating Axxon PSIM™ installed as a Service).

  15. Click the Next button.
    The window for selecting the MS SQL Server database server is displayed. Specify the authentication parameters during the connection.

    Attention!

    If the computer Administrator performs the installation of Axxon PSIM, and Windows credentials are used for the SQL server authentication, the access to the database of any other user is impossible without the additional settings of the idb.exe utility and knowledge of the Administrator login and password. That is why we highly don't recommend using such an authentication method of the SQL server.

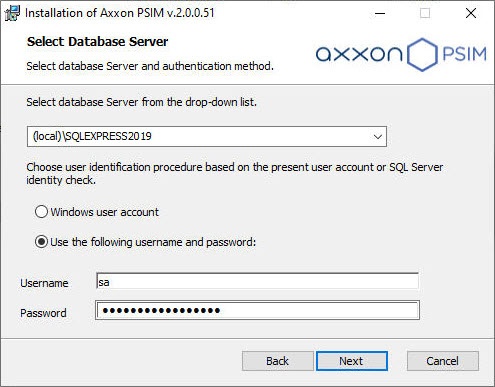

  16. Select the SQL server using the Database Server drop-down list.

    Note

    If you want to use the SQL server installed on this (local) computer, select the (local)\SQLEXPRESS item (set by default).

    Attention!

    You cannot connect different servers to one database.

    The server can use the remote database, but it results in high requirements for the network and other resources and can cause delays when you transmit events and states between cores that negatively affect the system performance.

  17. Set the authorization parameters that are used by Axxon PSIM during the connection to the SQL server.

    Note

    If you install Axxon PSIM as a Service, select the SQL server authentication check, that is, select Use the following username and password and specify the login and password to authorize in the server database in the corresponding fields. If you want to connect to the database using Windows credentials, then for proper operation of Axxon PSIM under any other user, the user must have the corresponding SQL server rights.

    Ways of authorization performed in the window.

    Ways of authorization

    Windows user account

    Use the following username and password (recommended)

    Usage

    SQL server from the Axxon PSIM distributive (or from the distributive of the third-party vendor) and Axxon PSIM are installed on one computer

    SQL server from the Axxon PSIM distributive and Axxon PSIM are installed on the same computer. Meanwhile, the connection to the SQL server with the set username (login) and password can be performed from any remote computer that is in the same network domain of the TCP/IP network as the computer on which the SQL server is being installed

    SQL server and Axxon PSIM are installed on different computers that are connected through the TCP/IP network and are within the same network domain. Meanwhile, the user account that is currently authorized in Windows OS on the computer where Axxon PSIM is being installed must be created in Windows OS on the computer with the installed MS SQL server

    SQL server from the Axxon PSIM distributive and Axxon PSIM are installed on different computers that are connected through the TCP/IP network and are in the same network domain. Meanwhile, the set username (login) and password must correspond to the username (login) and password used to access the SQL server

    The full-scale SQL server (additionally installed) and Axxon PSIM are installed on different computers, connected through the TCP/IP network and are within the same network domain. Meanwhile, the user account currently authorized in Windows OS on the computer where Axxon PSIM is being installed must be created on the remote SQL server

    The full-scale SQL server (additionally installed) and Axxon PSIM are installed on the same or different computers that are connected through the TCP/IP network and are in the same network domain. Meanwhile, the set username (login) and password must correspond to the username (login) and password used to access the SQL server

    Note

    For the SQL server installed from the Axxon PSIM distributive, the "sa" username and "PSIM_default_DB_4" password are used by default. When you install the Microsoft SQL Server Express 2014 server database, you can change the password to any other.
  18. To continue the installation process, click the Next button.
    The window for selecting the already existing databases or setting the names of the created databases is displayed.

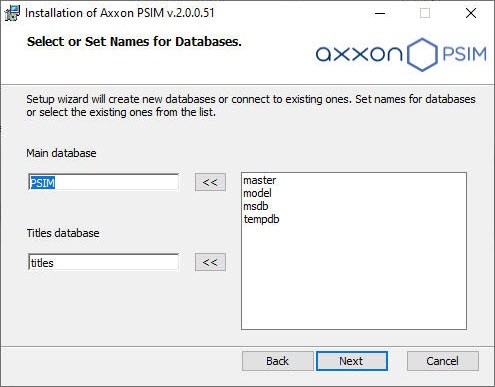

  19. By default, the psim database is used as the main PSIM database. If you want to use another database, select it in the Existing databases list and click the button next to the Main database field.
  20. By default, the titles database is used as the titles database. If you want to use another database, select it in the Existing databases list and click the button next to the Titles database field.

  21. Click the Next button.

    Note

    If the Rights are required to create or edit databases message appears during the system installation, you must stop the installation process and restart again.

    The advanced settings window is displayed.

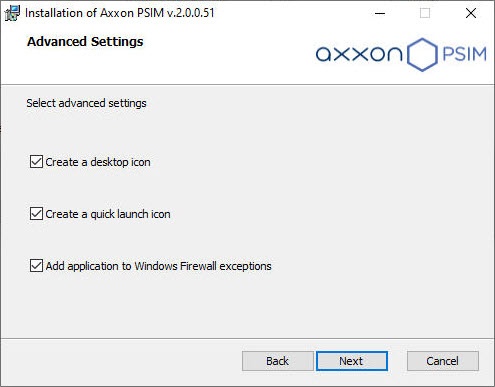

  22. If you want to create the Axxon PSIM desktop shortcut, set the corresponding checkbox.
  23. If you want to create the Axxon PSIM desktop icon in the quick launch toolbar, set the corresponding checkbox.
  24. If you want to add Axxon PSIM and all its components to the Windows firewall exceptions, set the corresponding checkbox.

  25. Click the Next button.

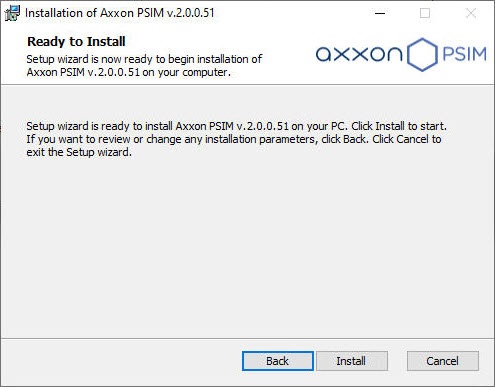

  26. The ready to install window is displayed.

    Note

     To change the setting, click the Back button.

  27. Click the Install button.

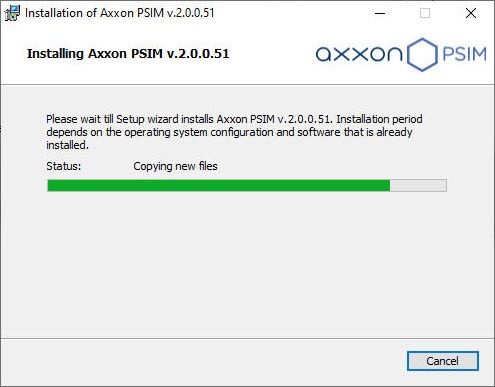

    Then the window of the Axxon PSIM installation process is displayed.

    Note

    When you install Axxon PSIM on Windows 7 SP1 OS without the internet connection, the error during the driver installation for the FX4 card can occur. To eliminate this error, you must install the following missing Windows updates:

    https://support.microsoft.com/en-us/kb/3004394

    https://support.microsoft.com/en-us/kb/3033929

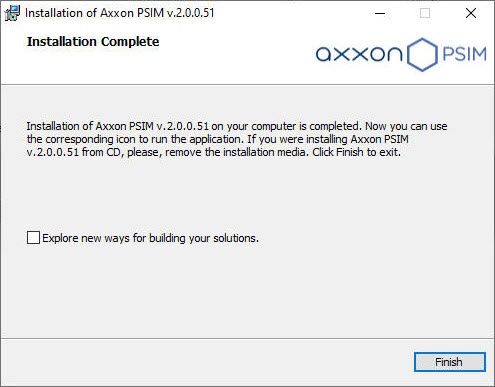

  28. The window indicating the completion of the installation of Axxon PSIM is displayed.
  29. Set the Explore new ways for building your solutions checkbox to view the document containing the information about new features of the installed Axxon PSIM version

  30. Click the Finish button.

    Note

    After that, the Driver Pack add-on installation starts.
    Starting with the Driver Pack 3.51 version, to work with this driver package, you must install the Windows KB2999226 update. If this update isn't installed in the system, the corresponding warning is displayed. To continue the installation, you must install the update from the official Microsoft website:
    https://www.microsoft.com/en-us/download/details.aspx?id=49093

    If the KB2999226 update is installed, but the software cannot identify it, run the Driver Pack installation from the command prompt with the SOFT_INSTALL = "yes" parameter.

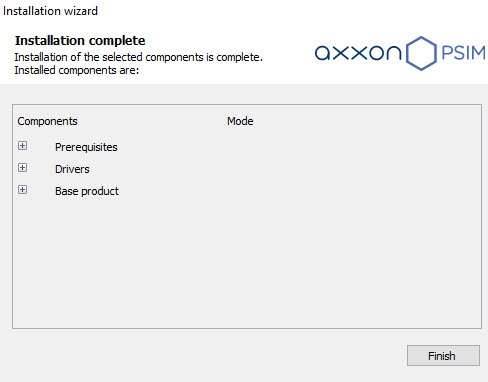

    Then the installation wizard window is displayed, containing the information about the status (installed or not) of the Axxon PSIM components.

  31. Click the Finish button.

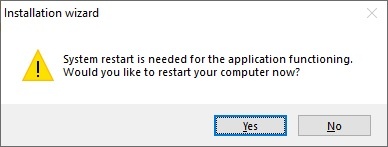

    The window prompting you to restart the system is displayed.

    You must restart the computer to correctly complete the Axxon PSIM installation. If you don't select the restart option now, you must do it yourself after the installation.

Installation of Axxon PSIM with the Server installation type is complete.
