The speaker, microphone, and camera of the SIP-operator are used for making calls via the SIP panel.

The settings of the corresponding Axxon PSIM objects are described in the following sections:

  1. Creating and configuring the Speaker object
  2. Creating and configuring the Microphone object
  3. Configuring video acquisition from IP devices (if the IP camera is used) or Creating and configuring the Camera object (for analog camera).

After you create and configure the corresponding objects, do the following:

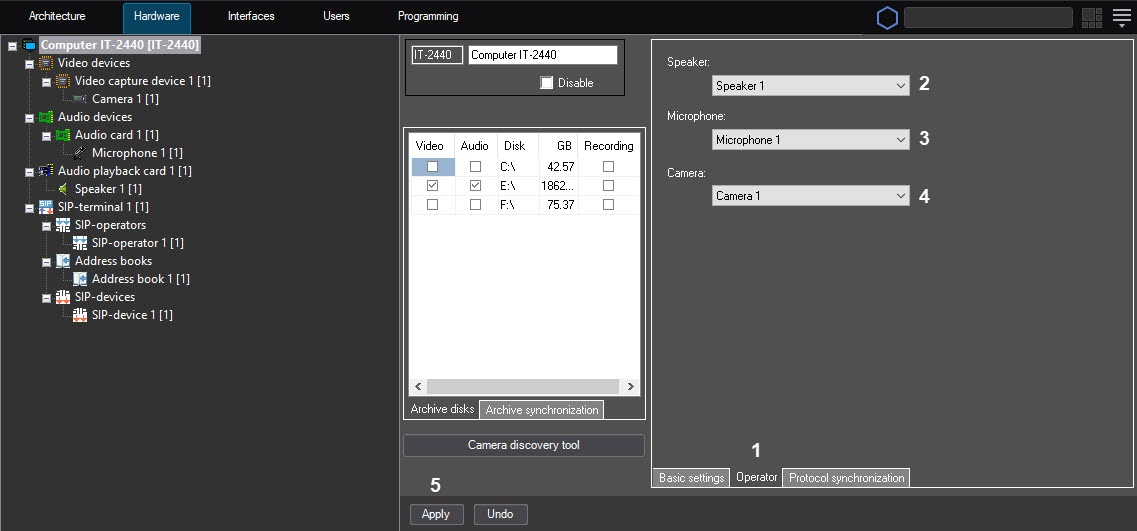

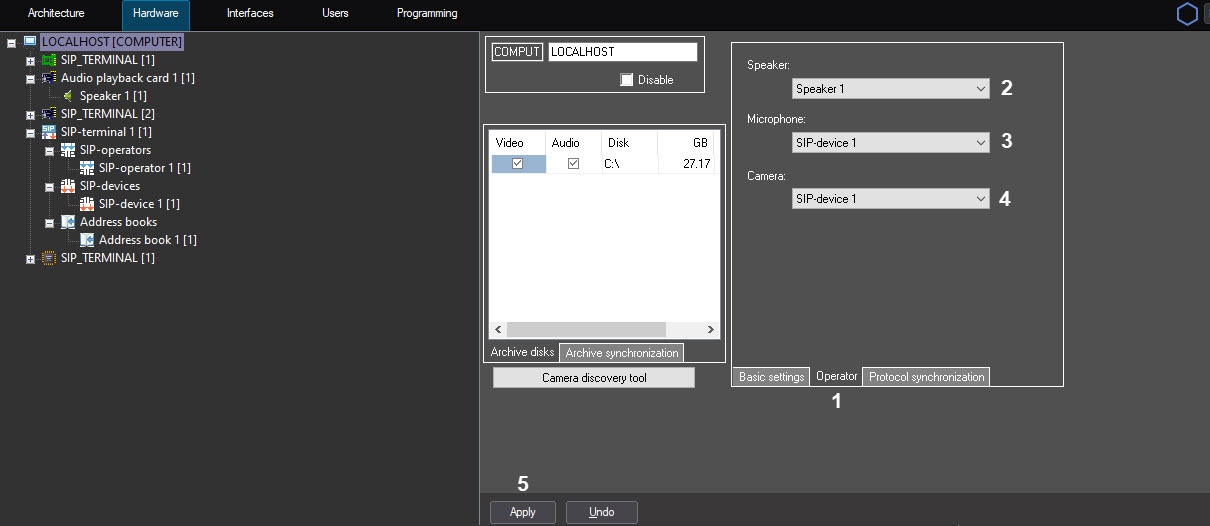

  1. Go to the settings panel of the Computer object corresponding to the Client or Server that the the SIP-operator uses.
  2. Go to the Operator tab (1).
  3. From the Speaker drop-down list (2), select the operator's speaker.
  4. From the Microphone drop-down list (3), select the operator's microphone.
  5. From the Camera drop-down list (4), select the operator's camera.
  6. Click the Apply button (5).

Selecting the speaker, microphone, and camera for the SIP-operator is complete.
