The settings panel of the Incident handler object

On this page:

The settings panel for the Incident handler object is shown in the figures. The description of the Incident handler setting parameters is given in the tables.

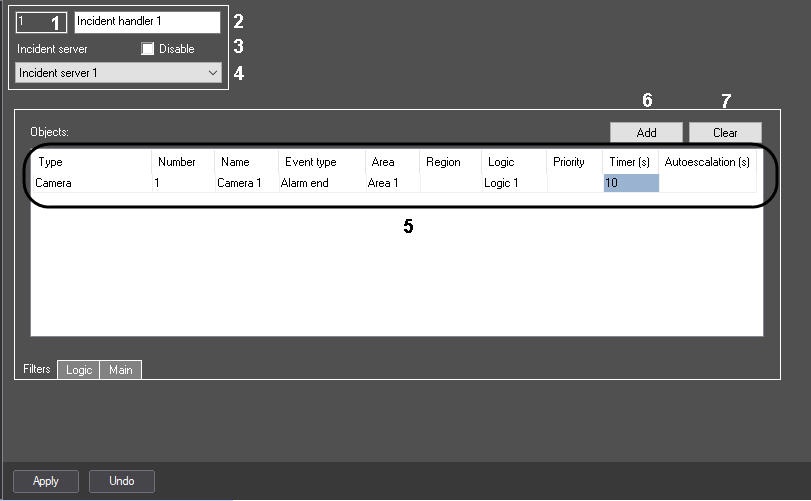

Object general settings and the Filters tab

№	Parameter	Method for setting the parameter value	Parameter description	Representation	Default value	Value range
1	The Identification number* field	Automatically	Displays the identification number of the Incident handler object in the video surveillance system with distributed architecture	Digits, letters, periods, hyphen, dash, and underscore	NA	Depends on the number of the Incident handler objects in the video surveillance system with distributed architecture
2	The Name* field	Enter the value in the field	Sets the name of the Incident handler object in the system	Latin alphabet, Cyrillic, digits and service characters	Incident handler	A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive. Number of characters—from 1 to 60
3	The Disable checkbox	Set the checkbox	Disables the Incident handler object	Boolean type	Clear	Set—the Incident handler object is disabled and isn't used Clear—the Incident handler object is enabled and used
4	The Incident server drop-down list	Select the value from the list	Sets the Incident server parent object for the given Incident handler object	Names of the Incident server objects registered in the system	Name of the Incident server parent object	Depends on the number of the Incident server objects in the system
The Filters tab
The Objects table
5	The Type drop-down list	Select the value from the list	Sets the type of objects for which the events must be displayed in the Incident manager window	Available object types	NA	Depends on the objects registered in the system. Only those object types are available for selection for which the "INFORMATION" or "ALARM" value is selected on the Events tab in the Processing messages column in the ddi.exe utility (see The Events tab)
	The Number drop-down list	Select the value from the list	Sets the number of the object for which the events must be displayed in the Incident manager window	Sequence of numbers	NA	Depends on the number of the objects of the specified type registered in the system
	The Name field	Automatically	Sets the name of the object for which the events in the Incident manager window must be displayed	Names of the objects registered in the system	NA	Depends on the objects registered in the system
	The Event type drop-down list	Select the value from the list	Sets the events displayed in the Incident manager interface window	Events available for the selected object	NA	Depends on the selected object type
	The Area drop-down list	Select the value from the list	Sets the area, the events from which are displayed in the incident manager window	Areas available for the selected object	NA	Depends on the selected object type and areas registered in the system
	The Region drop-down list	Select the value from the list	Sets the region, the events from which are displayed in the incident manager window	Regions available for the selected object	NA	Depends on the selected area
	The Logic drop-down list	Select the value from the list	Sets the logic that is used to handle the events of the corresponding object. Note. The logic must be specified. Otherwise, the selected events aren't displayed	Logic list	NA	Depends on the created Logic objects on the Logic tab
	The Priority drop-down list	Select the value from the list	Sets the priority level for events of the corresponding object	Priority levels specified on the Main tab	0	Depends on the priority templates created on the Main tab
	The Timer (s) field	Enter the value in the field	Sets the time in seconds from the moment the event occurs, after which the TIME_IS_OVER event is generated. The timer will also count down the specified time in the interface in the Time (s) column until it reaches zero	Time in seconds	NA	>=0
	The Autoescalation (s) field	Enter the value in the field	Sets the time in seconds from the moment the event occurs, after which the event is automatically escalated. Autoescalation is performed within one incident manager and works if the operator has the escalation rights	Time in seconds	NA	>=0
6	The Add button	Click the button	Opens the window for selecting events as a group (see Displaying and handling events in bulk)	NA	NA	NA
7	The Clear button	Click the button	Clears the table with the selected objects and events	NA	NA	NA

*Name of the element isn't displayed in the settings panel of the given object

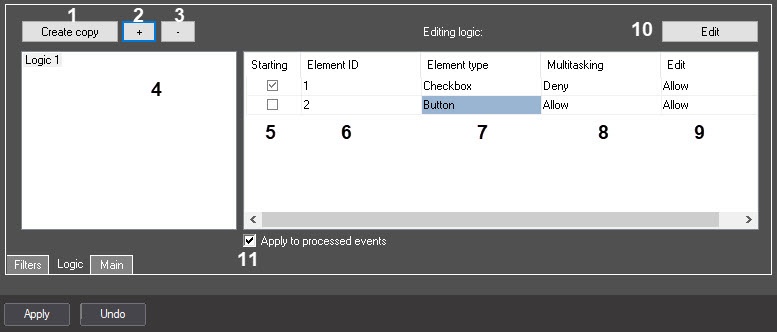

The Logic tab

№	Parameter	Method for setting the parameter value	Parameter description	Representation	Default value	Value range
1	The Create copy button	Click the button	If you select a logic in the list and click on this button, a copy of the selected logic is created. It will appear in the list of logics. The name of the new logic consists of the name of the original logic and the copy number in brackets. For example, for Logic 1, the first copy is named Logic 1(1), the second copy is named Logic 1(2)	NA	NA	NA
2	The + button	Click the button	Creates a new Logic object	NA	NA	NA
3	The - button	Click the button	Removes the Logic object selected in the logic list	NA	NA	NA
4	List of logics* area	Select the value from the list	Selects the logic which elements are displayed in the list on the right	List of the created logics	NA	Depends on the number of the created logics
The Editing logic table
5	The Starting checkbox	Set the checkbox	Selects the element that is displayed first for the operator when processing the event. To set the checkbox, do the following: Select an element in the table. Click the Edit button. In the Starting element drop-down list, select Yes. Click the OK button	Boolean type	Clear	Only one element in the logic can be the starting one. Set—the element is the starting element in the logic Clear—the element isn't a starting element in logic
6	The Element ID field	Enter the value in the field	Sets the element name	Latin alphabet, Cyrillic, and service characters	NA	From 0 to 255 characters
7	The Element type drop-down list	Select the value from the list	Sets the element type (see Configuring the elements)	Available element types	NA	Image; Button; Radio button; Comment; Combobox; Date/time; Checkboxes
8	The Multitasking drop-down list	Select the value from the list	Limits the ability to switch to processing another event if the operator is on the selected element	Available multitasking values	By default, when processing an event, you can move on to processing other events from any element of logic	Deny—when the selected element appears, the operator cannot switch to processing another event until the operator moves to the element with the Allow value or completes processing the event; Allow—when this element appears, the operator can proceed to processing another event
9	The Edit drop-down list	Select the value from the list	Allows stepping back when processing an event	Available values	By default, when processing an event, you can step back	Deny—you cannot step back Allow—you can step back
Out of the group
10	The Edit button	Click the button	Opens a window for editing the selected element (see Configuring the elements)	NA	NA	NA
11	The Apply to processed events checkbox	Set the checkbox	Resets the event processing. The option works if the administrator has changed the Logic, clicked Apply, and wants to use the updated logic for events in the incident manager	Boolean type	Clear	Set—the event processing with the selected logic is reset, and the event can be processed again with the updated logic Clear—the logic will change, but the started event processing operation with this logic isn't reset. The updated logic is applied only to subsequent new events

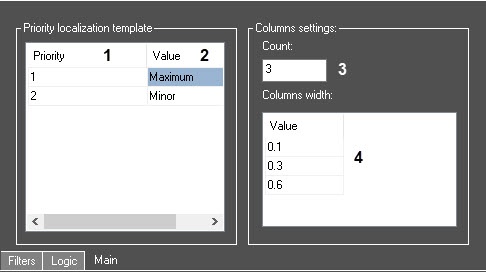

The Main tab

№	Parameter	Method for setting the parameter value	Parameter description	Representation	Default value	Value range
The Priority localization template table
1	The Priority field	Enter the value in the field	Sets the priority level	Priority level	NA	Numeric value, positive integer
2	The Value field	Enter the value in the field	Sets the priority description. If the priority description is set, then it is displayed in the incident manager, otherwise, the priority level is displayed	Priority description	NA	A line containing a sequence of any characters (letters, digits, service characters except > and < characters), case-insensitive. Number of characters—from 1 to 255
The Columns settings group
3	The Count field	Enter the value in the field	Sets the number of columns when displaying the event processing logic in the incident manager interface	Sequence of numbers	4	From 0 to 100
4	The Columns width field	Enter the value in the field	Sets the width of the columns when displaying the event processing logic in the incident manager interface	Pixels or fractions	150 pixels	Percentage values must be set in fractions of 1, for example, 0.25. If a value greater than 1 is set, then it is taken in pixels
