Configuring the NAC2500 controller

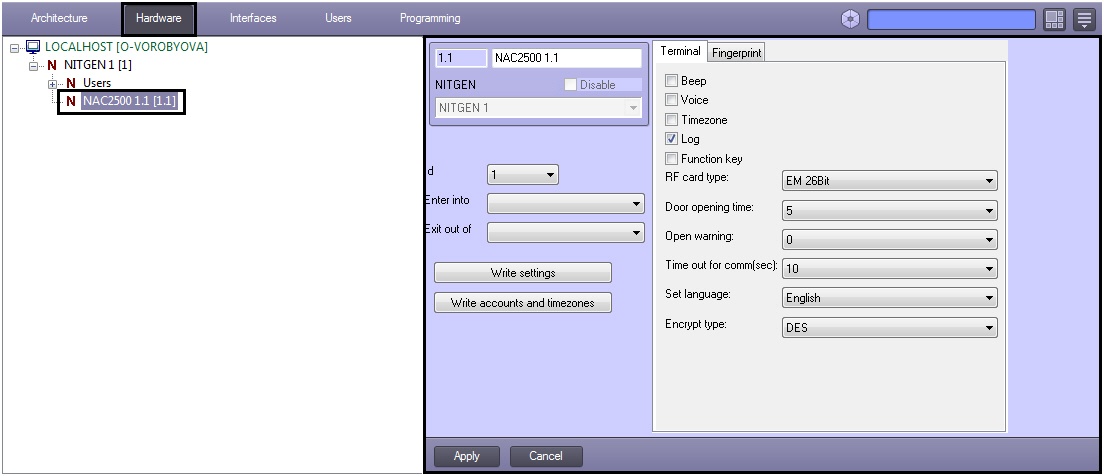

Configuring of the Nitgen controllers is performed on the settings panel of the NAC2500 object which is created on the basis of the NITGEN object on the Hardware tab of the System settings dialog window.

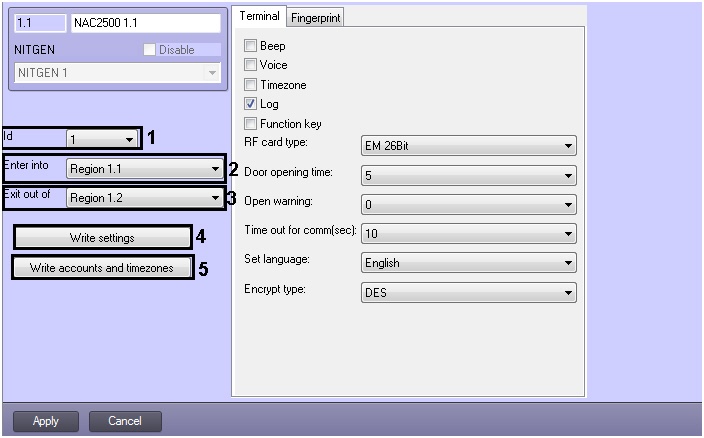

To configure the Nitgen controller, do the following:

1. Go to the NAC2500 object's settings panel.

2. From the Id drop-down list select the id number of controller (1).
3. From the Enter into drop-down list select the Region object corresponding to the territory situated on the side of exit from the territory via the controller (2).
4. From the Exit out of drop-down list select the Region object corresponding to the territory situated on the side of entrance to the territory via the controller (3).
5. Click the Write settings button to send settings to the controller (4).
6. Click the Write accounts and timezones button to send accounts and time zones to the controller (5).
7. Click Apply to save changes.

Configuring the NAC2500 controller is completed.
