To configure the Nitgen terminal, do the following:

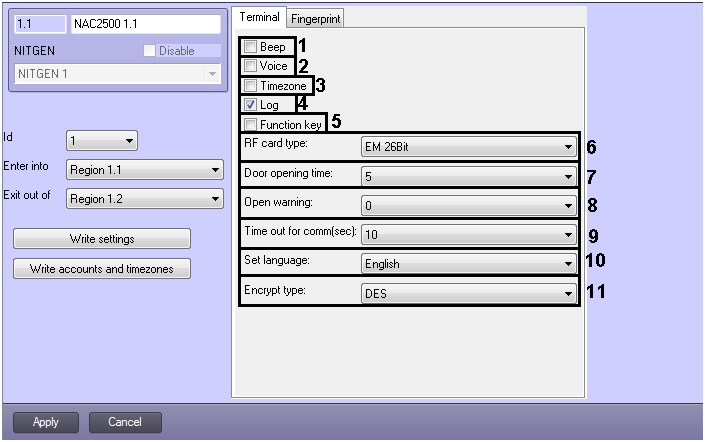

  1. Go to the Terminal tab of the NAC2500 object's settings panel.
  2. Set the Beep checkbox to generate sounds when screen is touched or keys are pressed on the terminal (1).
  3. Set the Voice checkbox to receive voice instructions when authenticating fingerprint at the terminal (2).
  4. Set the Timezone checkbox to enable time zone-related functions (3).
  5. Set the Log checkbox to transfer the log when an event occurs in the terminal (4).
  6. Set the Function key checkbox to use terminal function keys in application programs (5).
  7. From the RF card type: drop-down list select the required card type if RF cards are used to authenticate users (6).
  8. From the Door opening time: drop-down list select duration of door opening after the user is authenticated (7).
  9. From the Open warning: drop-down list select time period after which an alarm will sound if the door remains open for longer than the specified period (8).
  10. From the Time out for comm(sec): drop-down list select the time period after which the network connection will be considered nonexistent if the server and terminal are communicating through a network and no response occurs within the specified time (9).
  11. From the Set language: drop-down list select the language to display on the terminal screen (10).
  12. From the Encrypt type: drop-down list select the type of encryption for the data transmitted between the terminal and the network (11).
  13. Click Apply to save changes.

Configuring of the Nitgen terminal is completed.
