The operator of the Server of Control and Additional workplace modules can transmit the LPs' blacklist using the Monitoring interface object from the Details window of the log or control panel.

To open the Details window, click the Show details  button on the toolbar of the log or control panel .

By default, the blacklist transmission is disabled.

Transmitting the LPs' blacklist

  1. To enable the ability to transmit the LPs' blacklist, set the CarPlatesBlackList=1 parameter value of the HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\BitSoft\VHOST\VHostService registry key (see Vertical solutions, for more information on working with the registry, see Working with Windows OS registry).

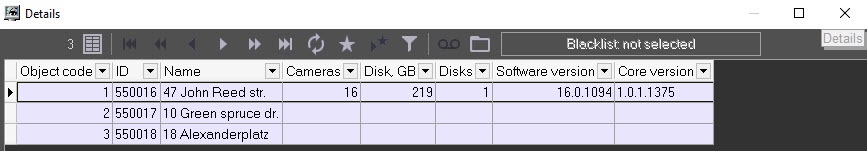

    As a result, the Blacklist and Select file buttons are displayed on the toolbar of the Details window.

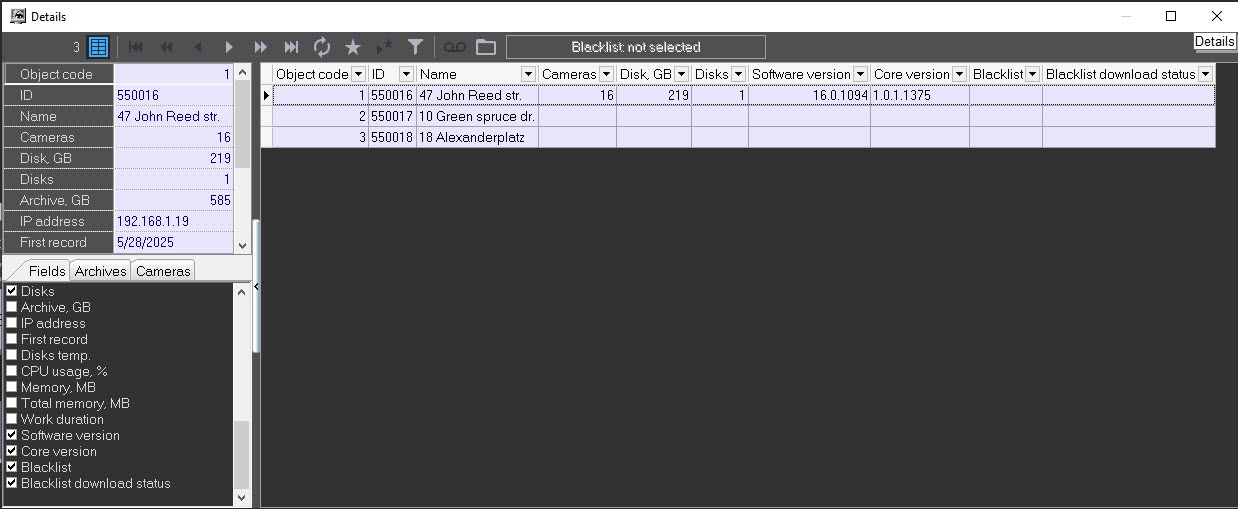

  2. Enable the visibility of other Blacklist and Blacklist download status columns on the Fields tab (for more details, see Information about an object).
  3. Click the Select file button at the top of the toolbar.

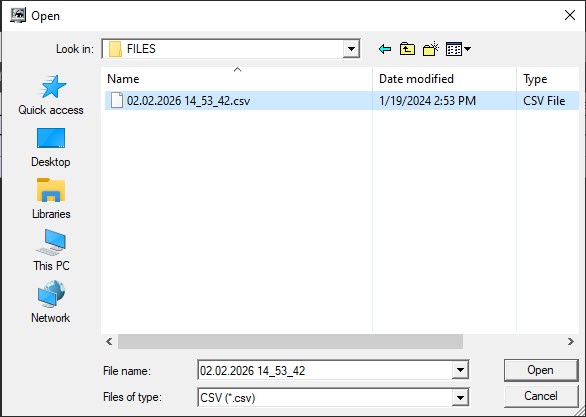

  4. In the Windows dialog window that opens, select the required file with the LPs' blacklist.

    Note

    The blacklist file format must match the export/import file format of the Auto PSIM "Active tracking" database (for more details, see Creating the Active tracking database).

    Files whose names exceed 23 characters are ignored.

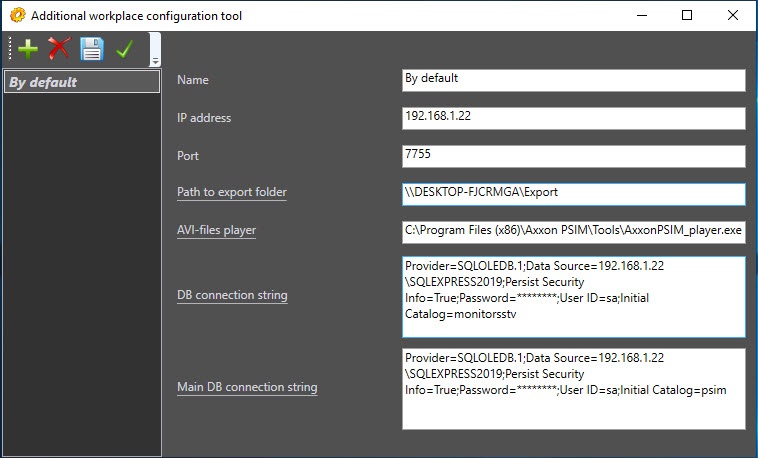

    The selected file is copied to the Server of Control export directory that is located by default at C:\Export. If the operator of the Additional workplace module performs this operation, then make sure that the path to the export directory is correct.

  5. Select where to send the LPs' blacklist file by clicking the Blacklist: Transmit to selected object or Transmit to all objects button.

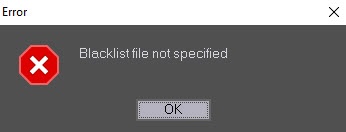

    If you try to send the LPs' blacklist without specifying a file, the corresponding error message appears.

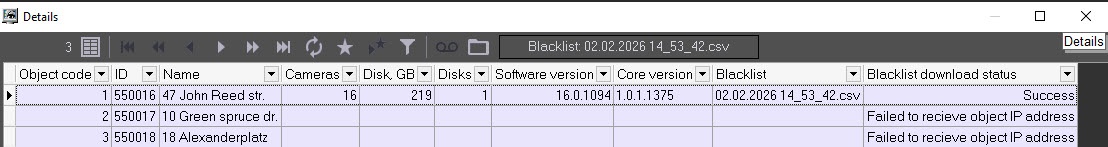

    After you select the Transmit to all objects menu item, the Server of Control module sends the LPs' blacklist file to all system Agents of Control in parallel. If the sending to the Agent of Control is successful and the loading to the database is without errors, the Blacklist column displays the name of this accepted file, and the     Blacklist download status column displays the Success row. If there are mistakes during the loading, they appear in the download status column.

Transmitting the LPs' blacklist is complete.

The list of errors when loading the LPs' blacklist file

Error codeError descriptionError sourceComment
0Success

1Failure in main databaseAgent of Control
2Failure in license plate databaseAgent of Control
3Blacklist file processing failureAgent of ControlPossibly, the incorrect file format
4Error opening main databaseAgent of Control
5Error opening license plate databaseAgent of Control
6No External LP database object found in settingAgent of ControlYou don't install Auto PSIM or create the External LP database object on the computer with the Agent of Control module
7Failure in MonitorSSTV databaseServer of Control
8Error opening MonitorSSTV databaseServer of Control
9Failed to receive blacklist file nameServer of ControlThe MonitorSSTV database has no information about the blacklist name
10Failed to receive object IP addressServer of ControlThe Agent of Control module doesn't still connect to the Server of Control module
11Error opening blacklist fileServer of ControlThe blacklist file is absent in the export directory. The possible reason is that you select this file on the Additional workplace module with the export directory configured impoperly
12Error connecting to objectServer of ControlYou fail to connect to the Agent of Control module via TCP/IP to the port 8888 (by default)
13Error transmitting data to objectServer of Control

Features of transmitting the LPs' blacklist

  1. By default, the Server of Control module connects to the 8888 port of the Agent of Control module. The example of configuring at the side of the Agent of Control module.

    If you change this setting on the side of any Agent of Control module, you can specify another port number on the Server of Control side by using the TcpPortForBlackList parameter for all Agent of Control modules and the TcpPortForBlackList<ID> parameter for separate Agent of Control modules of the HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\BitSoft\VHOST\VHostService registry key     (see Vertical solutions, for more information on working with the registry, see Working with Windows OS registry).
  2. The operation with the External Plates DB object of a lower number is performed on the Agent of Control module.

  3. You can only view the values of the Blacklist and Blacklist download status fields in the Details window on the Central Server of Control and the Additional workplace of CSC modules but cannot load the LPs' blacklist file to Agents of Control.
