Configure the image as follows:

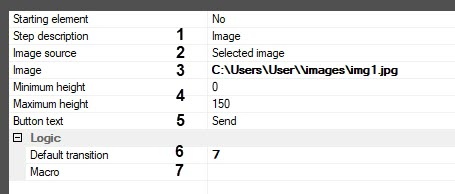

  1. On the Logic tab, select the required element in the table and click the Edit button.
  2. If necessary, in the Step description field (1), enter the text that will be displayed in the column to the left opposite the element.
  3. In the Image source drop-down list (2), select the image source:
    1. Images from cameras. When processing an event, images from cameras associated with the object that triggered the event will be displayed (see Connection of objects with cameras). If the event is triggered by a specific camera, then the image from it will be used.

    2. Images from maps: an image from the associated map will be used. If there are several layers on the map, then the image from the layer to which the object is attached will be used. If an object is attached to multiple layers, the layer on which the object was added earlier than other layers will be used.

      Note

      To use the image from the map, the object should be added to the map and the map should be selected in the Incident manager settings (see Configuring the main parameters of the Incident manager).

    3. Images from Operator: Operator uploads images by himself.

    4. Specified image: the image specified in the Image field (3) will be displayed. In this case, in the Image field, it is necessary to specify the path to the image, for example C:\Users\User1\Folder1\img1.png. The image can be in the following formats: jpg, bmp, png.

      Note

      The Image field (3) is displayed only if the Specified image value is selected.

  4. In the Minimum height and Maximum height fields (4), enter the minimum and maximum image display height in pixels.

  5. In the Button text field (5), enter the text that will be displayed on the button.

    Note

    If there are any event parameters, you can set them in the label text. To do this, in the Button text field, enter %<parameter name>%. For example, if you specify %time%, then the time of the event will be displayed on the button, if you specify %date% — the date will be displayed, if %user_id% — the user ID will be displayed (see Database tables reference guide for Axxon PSIM and vertical solutions).

  6. In the Default transition field (6), select the element that should be displayed after clicking on the button.
  7. If it is necessary to execute a macro command by clicking the button, select it from the Macro list (7).
  8. Click OK.

Example of displaying the Image element:
