Configuration management of the BioSmart UniPass controller and the Biosmart PV-WTC terminal is carried out as follows:

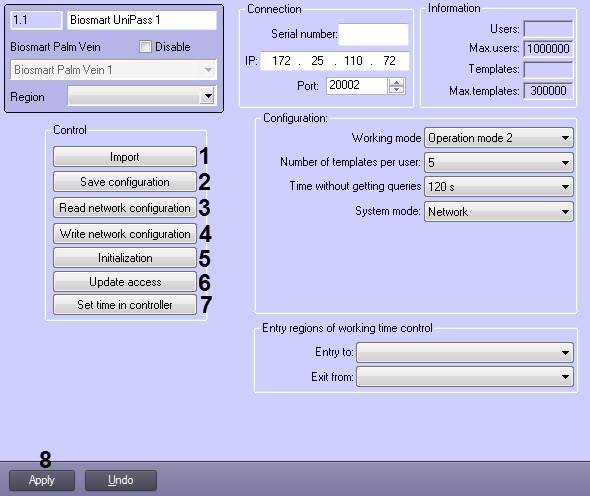

  1. Go to the settings panel of the Biosmart Unipass or Biosmart WTC object, which is created on the basis of the Biosmart Palm Vein

  2. Press the Import button (1) to subtract configuration.

    Note

    After reading the configuration, the Information block on the settings panel will be filled. It is for reference only and shows how many users are allowed to enter and how many vein patterns are registered for them, as well as the factory maximum settings.

  3. Click the Save Configuration button (2) to save the configuration changes to controller/terminal.
  4. Click the Read network configuration button (3) to read the data of the network operating mode from the controller/terminal (see Configuring BioSmart UniPass and Biosmart PV-WTC).
  5. Click the Write network configuration button (4) to write the system network operating mode changes to the controller/terminal (see Configuring BioSmart UniPass and Biosmart PV-WTC).
  6. Click the Initialization button (5) to delete all user data, maps, palm vein patterns, and time zone data.
  7. Click the Update Access button (6) to write access data to the controller / terminal.
  8. Click the Set time in controller button (7) to synchronize the time of the controller / terminal and the ACF A-Intellect PC Server.
  9. Click Apply to save changes (8).

Biosmart Unipass and Biosmart PV-WTC configuration management completed.
