Viewing camera events

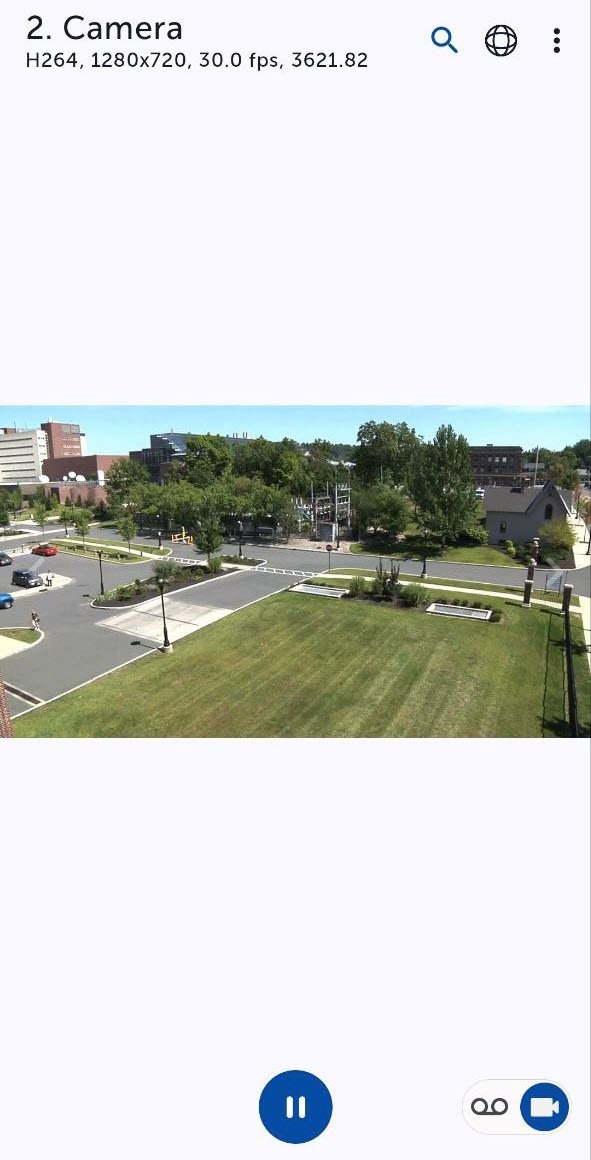

To view camera events, select the
button in the upper left corner of the screen.

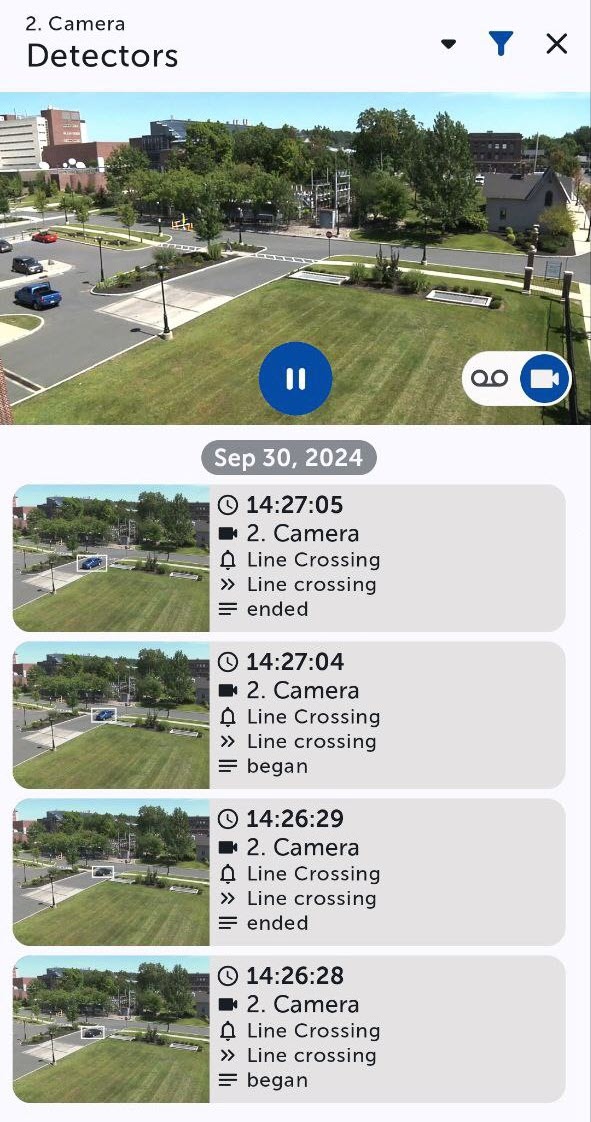

The events panel is displayed at the bottom of the screen.

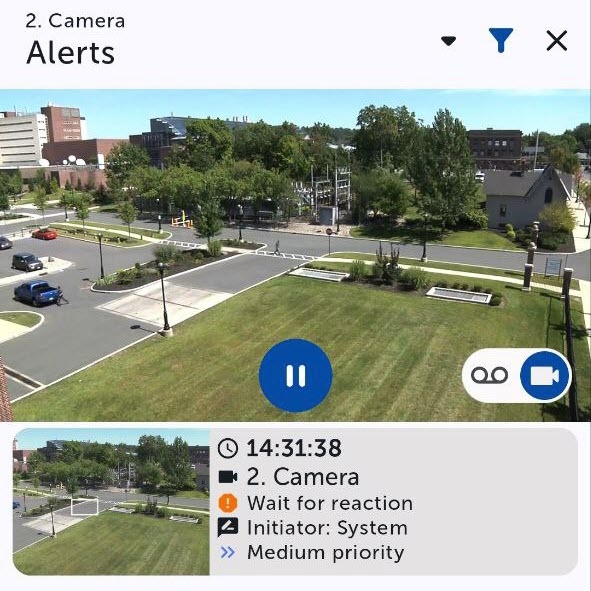

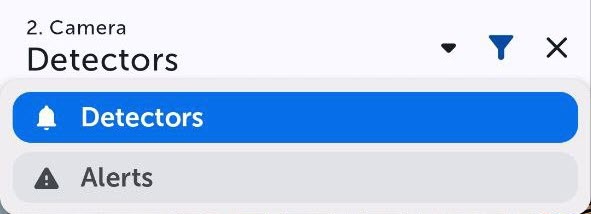

To view the camera alert events, select Detectors and select Alerts from the drop-down list.
Note
Depending on the type of detector created for the camera, additional tabs can be displayed.
As a result, the camera alert events will be displayed. You can take the alerts into processing (see The Alerts tab in the AxxonNet mobile client on Android OS).
When you select the corresponding event, you will go to viewing the archive at the time the event occurred (see Viewing archive in the AxxonNet mobile client on Android OS). By default, events of all types over the last hour are displayed.
To close the events panel, select the
button in the upper right corner.
Events filter
To specify the events filter, select the

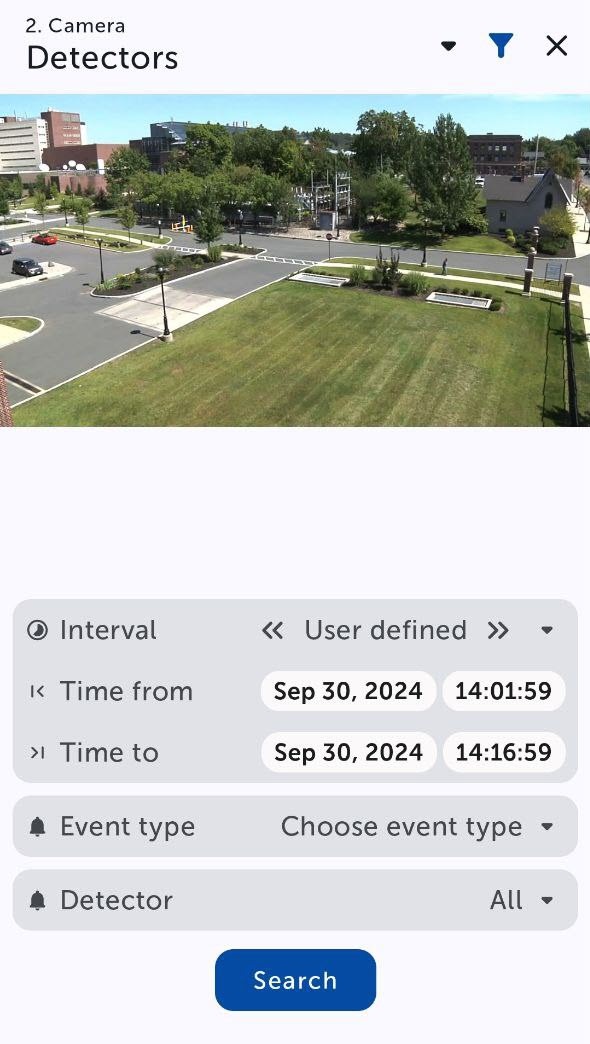

button in the upper right corner of the screen. As a result, the filter panel is displayed:
- In the Interval parameter, select one of the preset time intervals for which you want to display events.

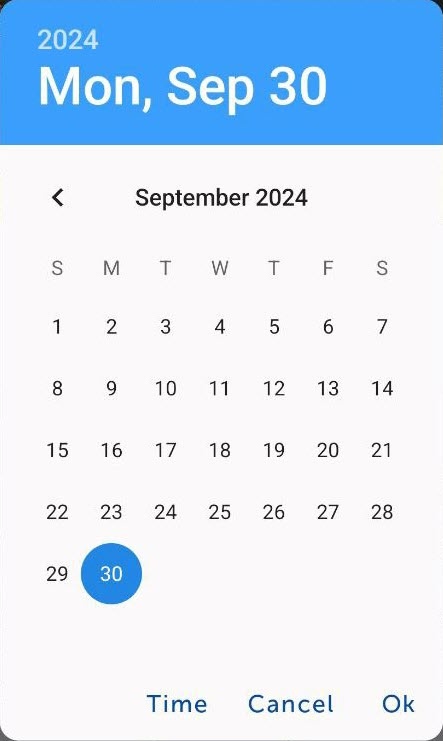

- If necessary, you can set the time interval manually by selecting the date or time in the Time from and Time to parameters. A window in which you must select a date opens:

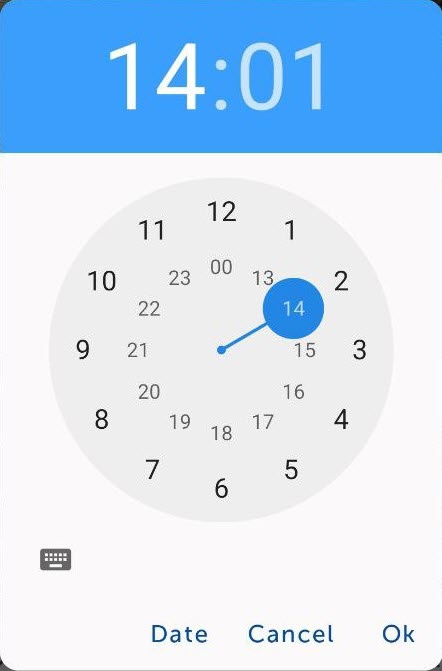

Or the exact time:
- To apply the selected time interval, select the OK button.
- Choose the event type by selecting Choose event type.
Choose the event detector by selecting All.
Note
You cannot choose event type and detector when you connect to the Axxon PSIM Server.
To apply the filter, select the Search button. A list of events corresponding to the specified filter will be displayed.
