Configuring the Hikvision user cards

To configure the Hikvision user cards, do the following:

1. Go to the user editing in the Access Manager module (see Going to user editing).

2. In the advanced options tab, select the Hikvision extention option and click the  button.

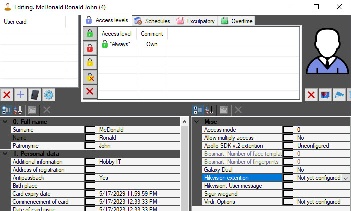

   The Hikvision extended user options window opens.

   Note.

   If the Hikvision extention parameter is not displayed, enable it for user accounts (Configuring fields displaying in user accounts).



3. Select the required Hikvision controller from the object tree (1).
4. Set the Leader card checkbox (2) if it is necessary to activate all readers connected to this controller by the first card swipe through any of the readers.

5. From the Card type drop-down list (3), select the card type:

   Invalid	Invalid card
   Ordinary card	Normal card
   Disabled card	Swiping this type of card prevents the door from locking for a time interval specified by the Unlock Time for Disabled Pass parameter (see Configuring the Hikvision door).
   Blacklist card	When a blacklisted card is swiped, a system event is generated without granting access
   Patrol card	This type of cards can be used by supervisors
   Stress card	If a user is under duress, this card opens the door and generates a duress alarm
   Super card	This card opens all doors of a given controller within a time zone defined by user's access level
   Visitor card	The card is intended for visitors. You can set the maximum number of swipes for this card in the Max count of swipe field (see step 6).

6. Set a limit for a number of Visitor card swipes in the Max count of swipe field (4).

   Note.

   The maximum number of swipes must be in the range from 0 to 255. The 0 value means that there are no restrictions on the number of swipes.

7. Specify a card password in the Auth. pass field (5). The password consists of 4 to 8 digits.

   Note

   The availability of this parameter setting depends on the Hikvision controller model.

8. Check the boxes for the required card groups in the (6) field.

   Note

   The availability of this parameter setting depends on the Hikvision controller model.

9. Click the Apply button (7) to save the changes.

The Hikvision user cards are now configured.
