The server corresponds to the computer with the installed Axxon One in the Server and Client configuration that is included in the domain.

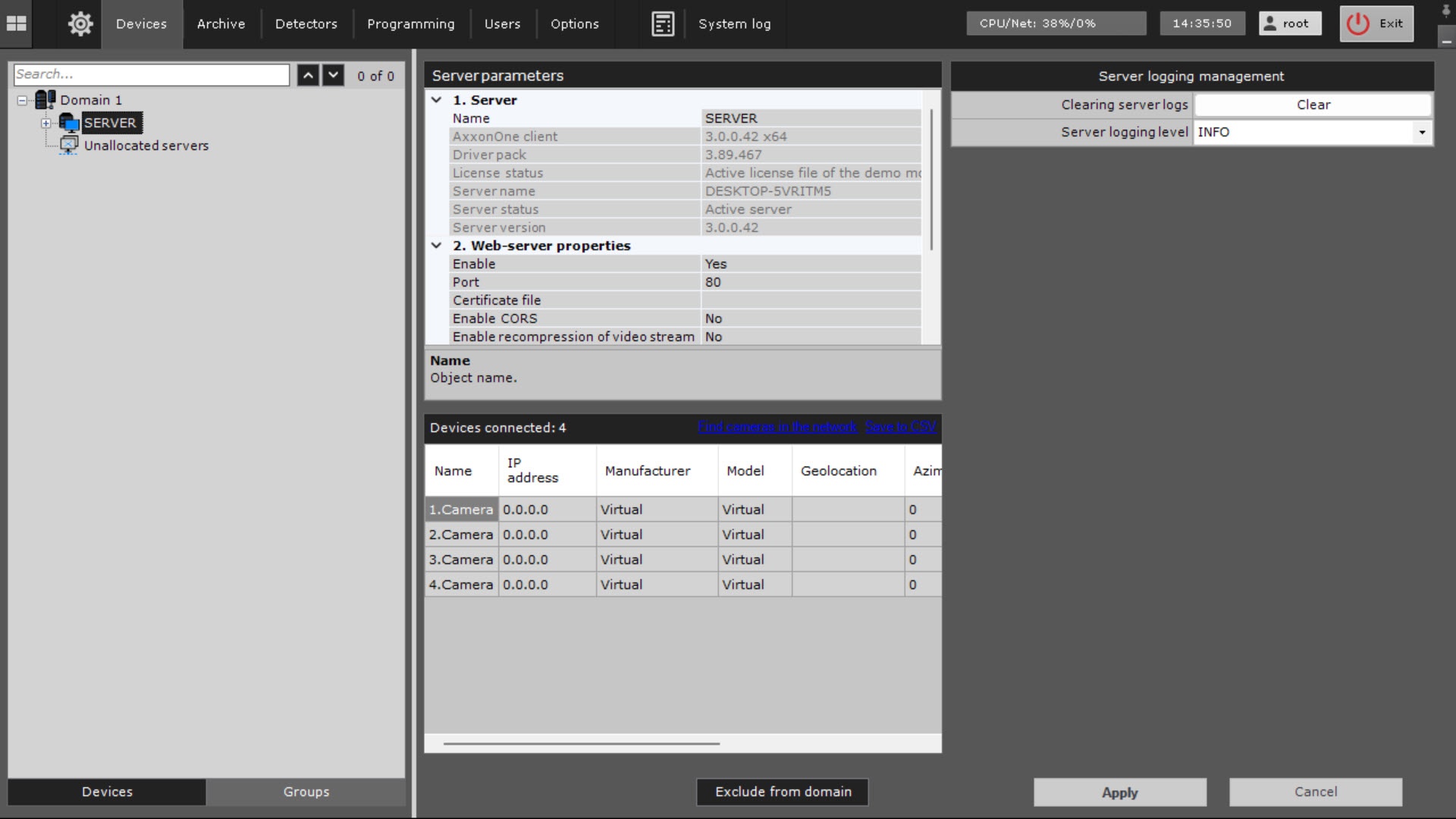

When you select the Server object on the Devices tab, the interface is displayed that contains:

  1. The information about the installed Axxon One version and the used license in the Server version and License status parameters.
  2. The server name. By default, the server name matches with the computer network name. To change this name, you must enter a new name in the Name field and click the Apply button.
  3. The Web-server and RTSP-server configuration group of options in the Web-server properties section (see Configuring the Web-Server, Configuring the RTSP server).

  4. The list of cameras connected to the server, with the main parameters in the Devices connected section. The list of cameras is given in the table with the following columns: Name, IP address, Name, Model, Geolocation, Azimuth, Video Stream, Frame Rate, and Resolution. You can sort the table by each column.

    Note

    • If no cameras are created on the server, you are prompted to search for IP devices on the network (the IP Device Discovery Wizard is started, see Searching, adding, configuring, and removing IP devices).
    • The number of connected devices means the total number of available IP video channels in the system, including disabled ones.
    If a camera supports the transmission of multiple streams, then the information in the Video Stream, Frame Rate, and Resolution columns is given in the following way: the parameter value for the video stream of low quality/the parameter value for the video stream of high quality.
  5. Created and connected face lists (see Faces).
  6. Created and connected LPs lists (see LPs).

  7. The Exclude from domain button excludes a server from the domain (see Removing a Server from an Axxon-domain).
